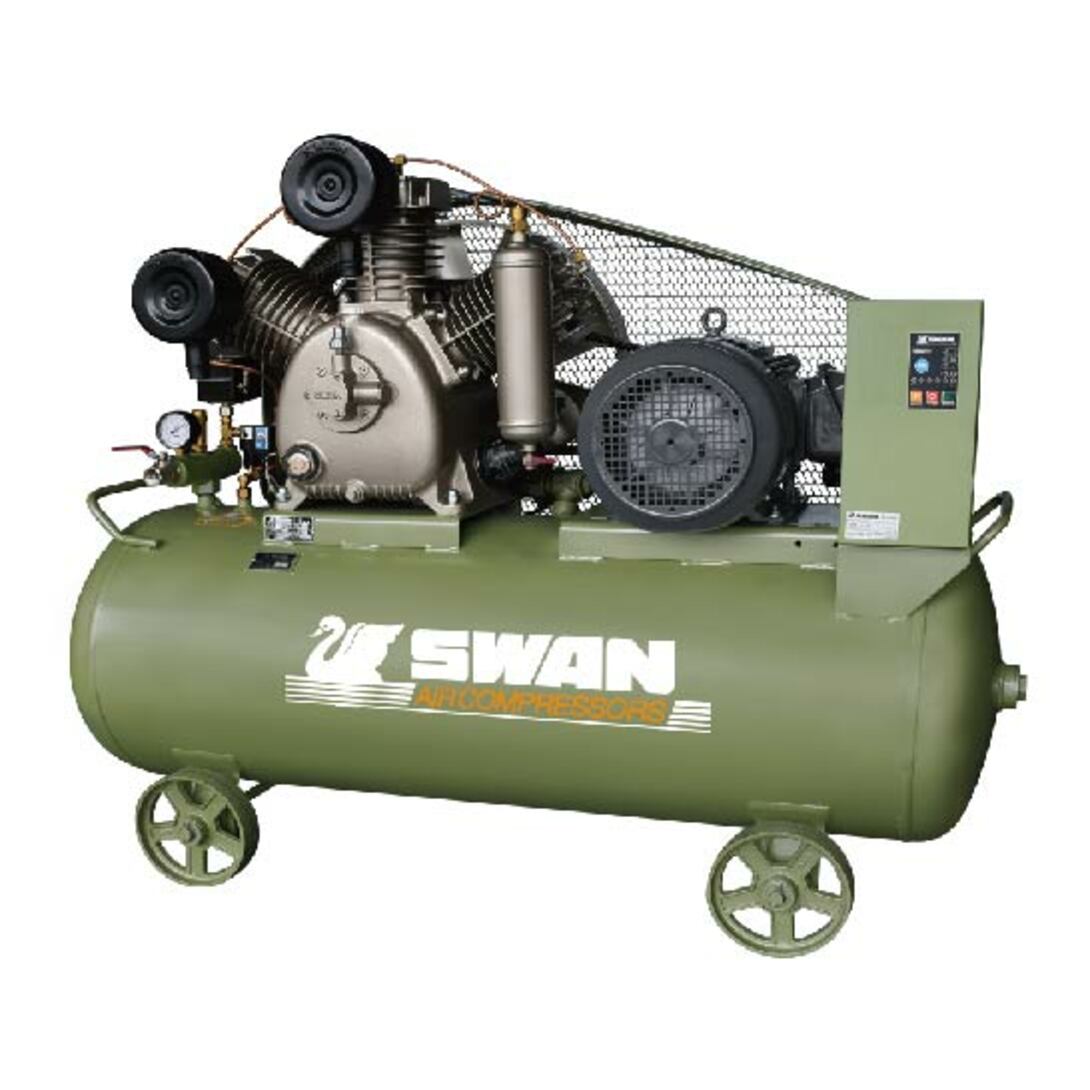

HN Series

SWAN air compressor HN series are high efficient , two stage with large displacements and smooth operating. Its excellent cooling air circulation system will prolong service life and save more costs.

Specifications

  • Horse power (HP) 5~15
  • Working pressure (kg/cm²) 12~16
  • Capacity (m³/min) 0.338~1.064
聯絡我們

Contact us
型錄下載

Catalogue download
詳細規格

Detailed specifications

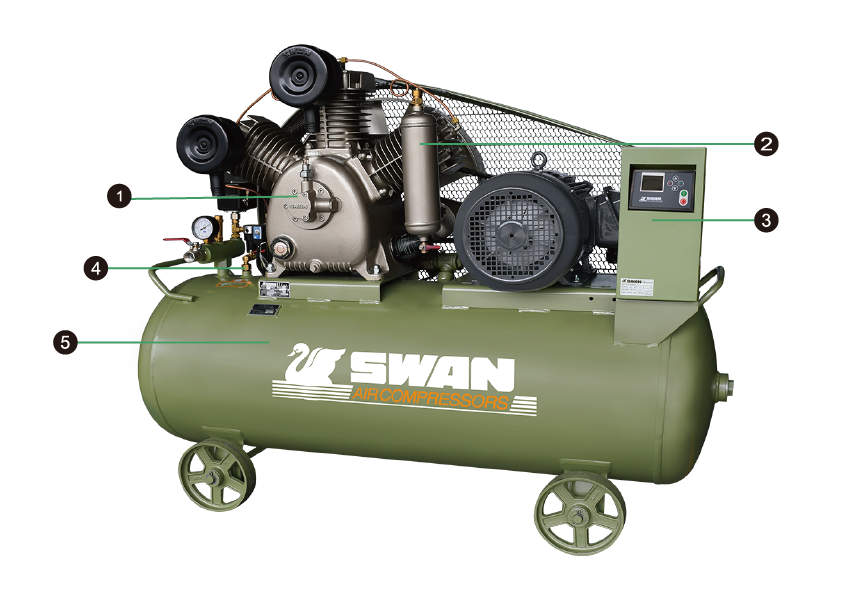

ENFORCED LUBRICATION HIGH PRESSURE SERIES

  1. Enforced lubrication compression pump
  2. High pressure buffer tank
  3. Intelligent control panel
  4. Patented drain valve on top of air tank
  5. Powder coated air tank


INTRODUCTION OF ACCESSORIES

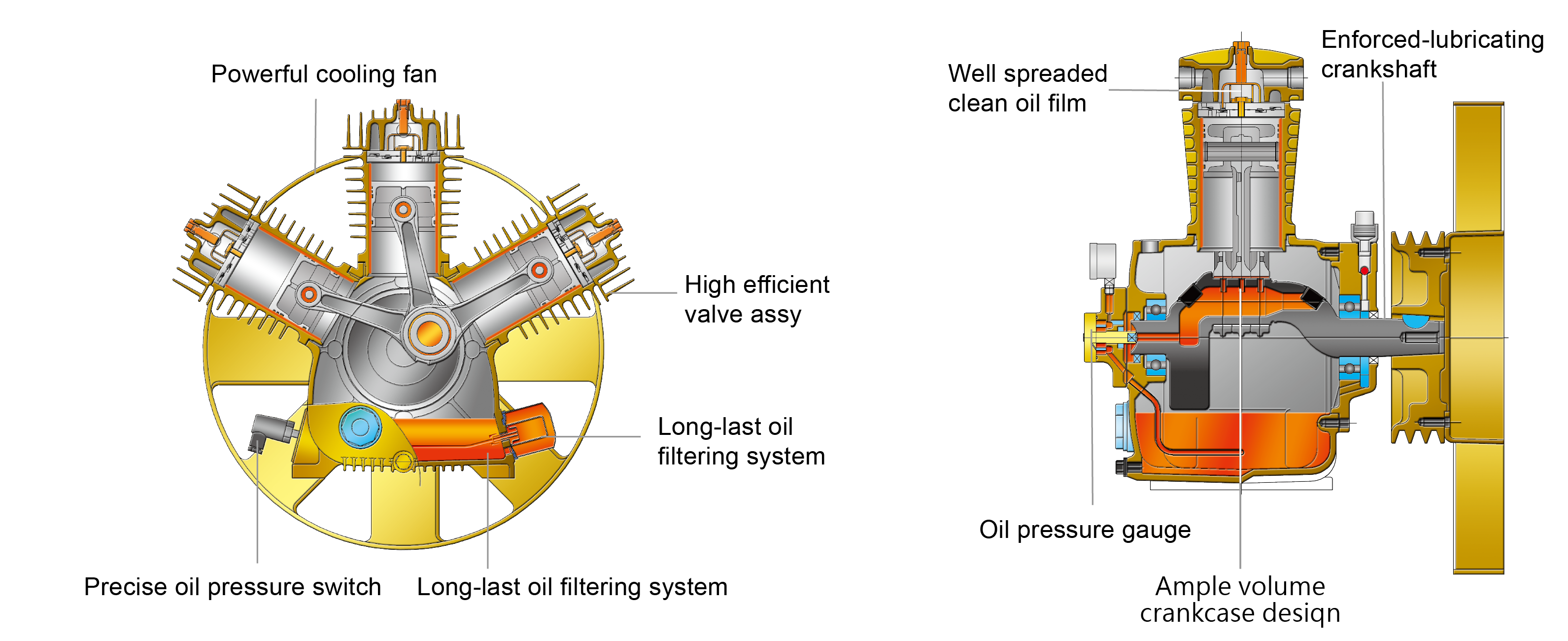

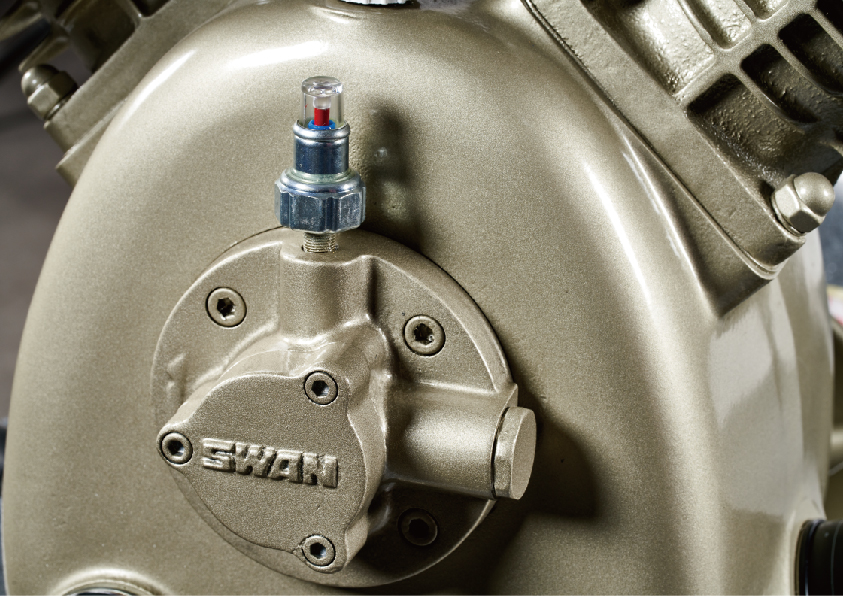

Enforced lubrication compression pump structure

With special lubricating oil filtrate system for lubricate and cooling, also ensure clean lubricating oil in compressor.​​​​​  Free from concern of damage caused by foreign dust mixed with lubricating oil.

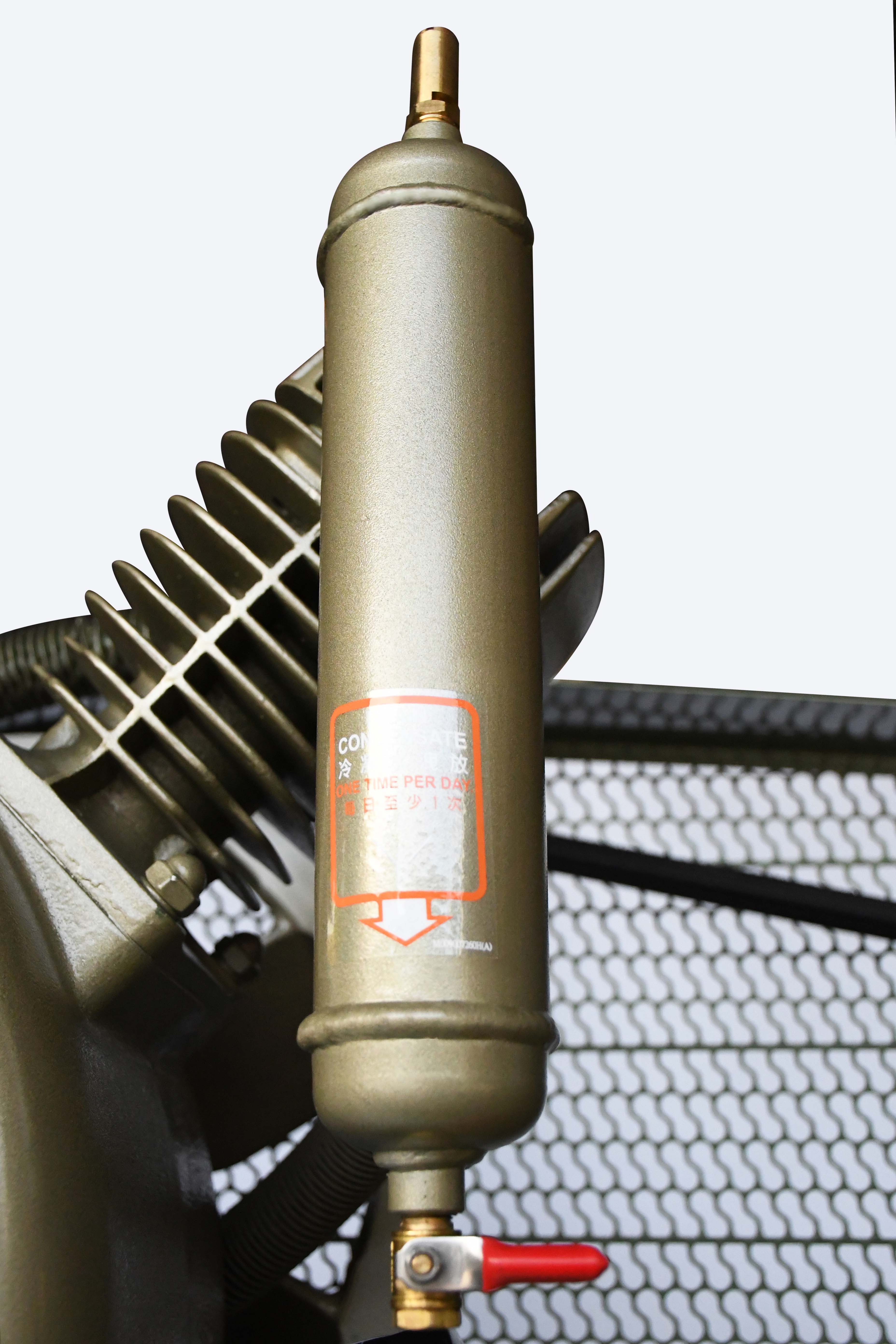

High pressure buffer tank

High efficiency 2 stage compress design able to offer powerful and steady compressed air output during operation.

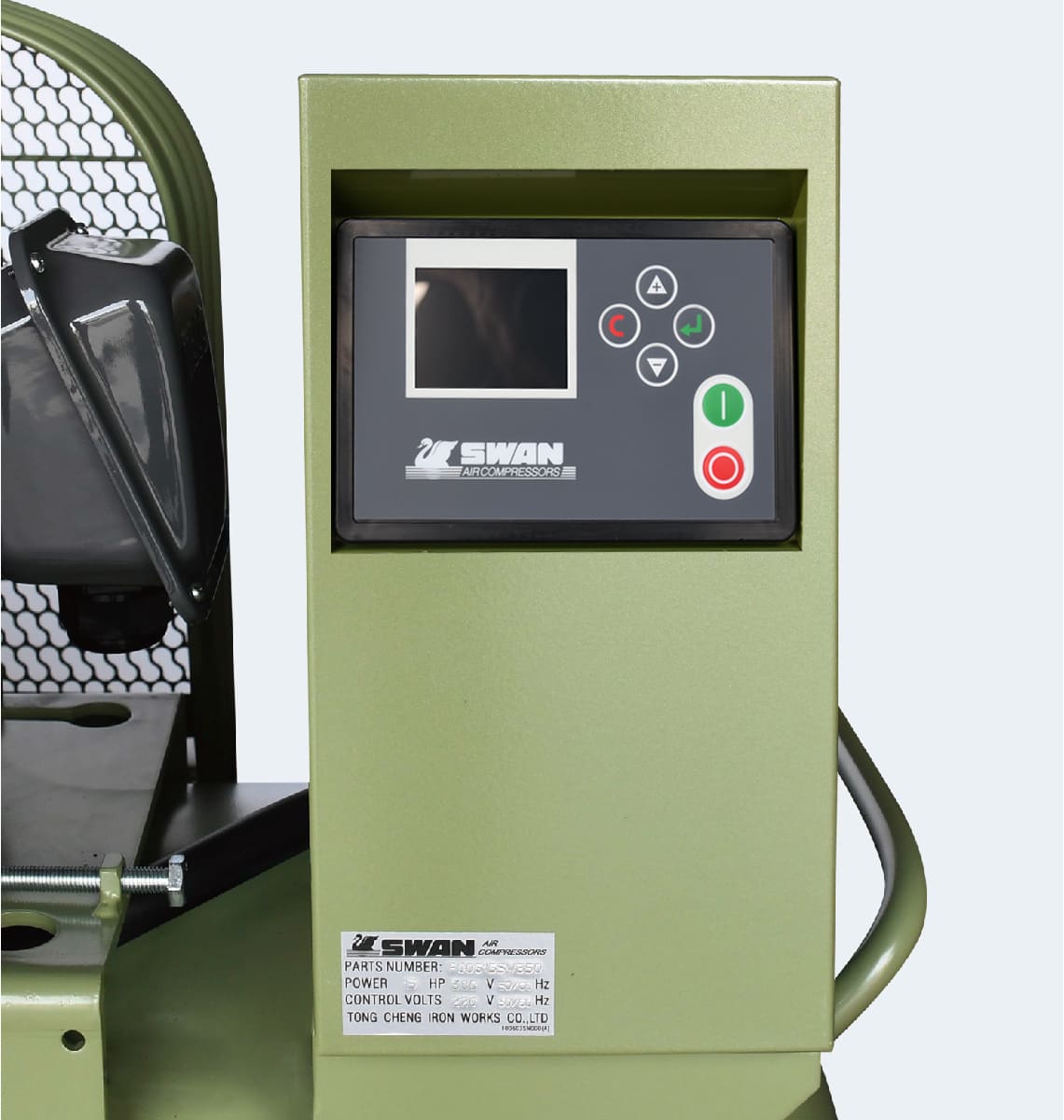

Intelligent control panel

Real time lubrication and non-loading start/stop design to eliminate wearout during on/off.  Flexible remote control offer humanized operation. Intelligent auto-control able to adjust self protection based on actual air consumption.  Running status and failure will be indicated on control panel, allow operator to react at first moment.

Patented drain valve on top of air tank

Exclusive patented water drain valve on top of the air tank, able to exhaust condensed water accumulated in air tank.  Further to reduce possibility of tank rust and extend durability.

Powder coated air tank

Air tank prepared by initially shot blasting, thicker powder coating applied to ensure bright and durible surface protection.

Environmental friendly coating process also applied during manufacturing.


PRODUCT FEATURES


COMPRESSOR HEAD STRENGTH



HN series with special lubrication pump design, especially for certain environment and applications. Compressor pump by gold painting, accompany with durable powder coating air tank. Centralize check points for easier maintenance.

Easy spare parts replacement able to let daily maintenance practical and convenient.

For 24 HRS continuous running, heavy compressed air loading and frequent on/off, SN series may fit requirement.



Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Tank Capacity (liter) Dimension (mm) (L*W*H) Weight (kg)

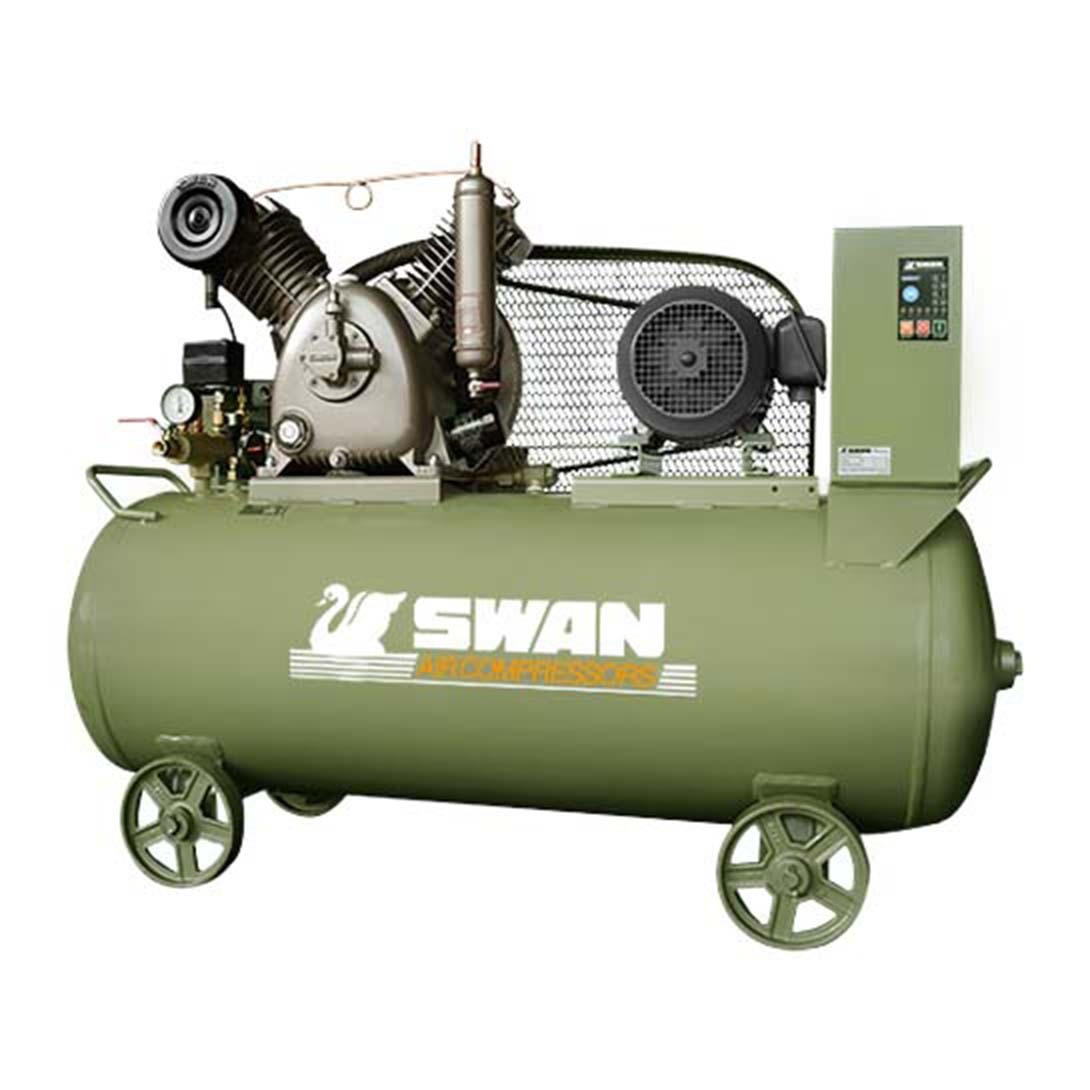

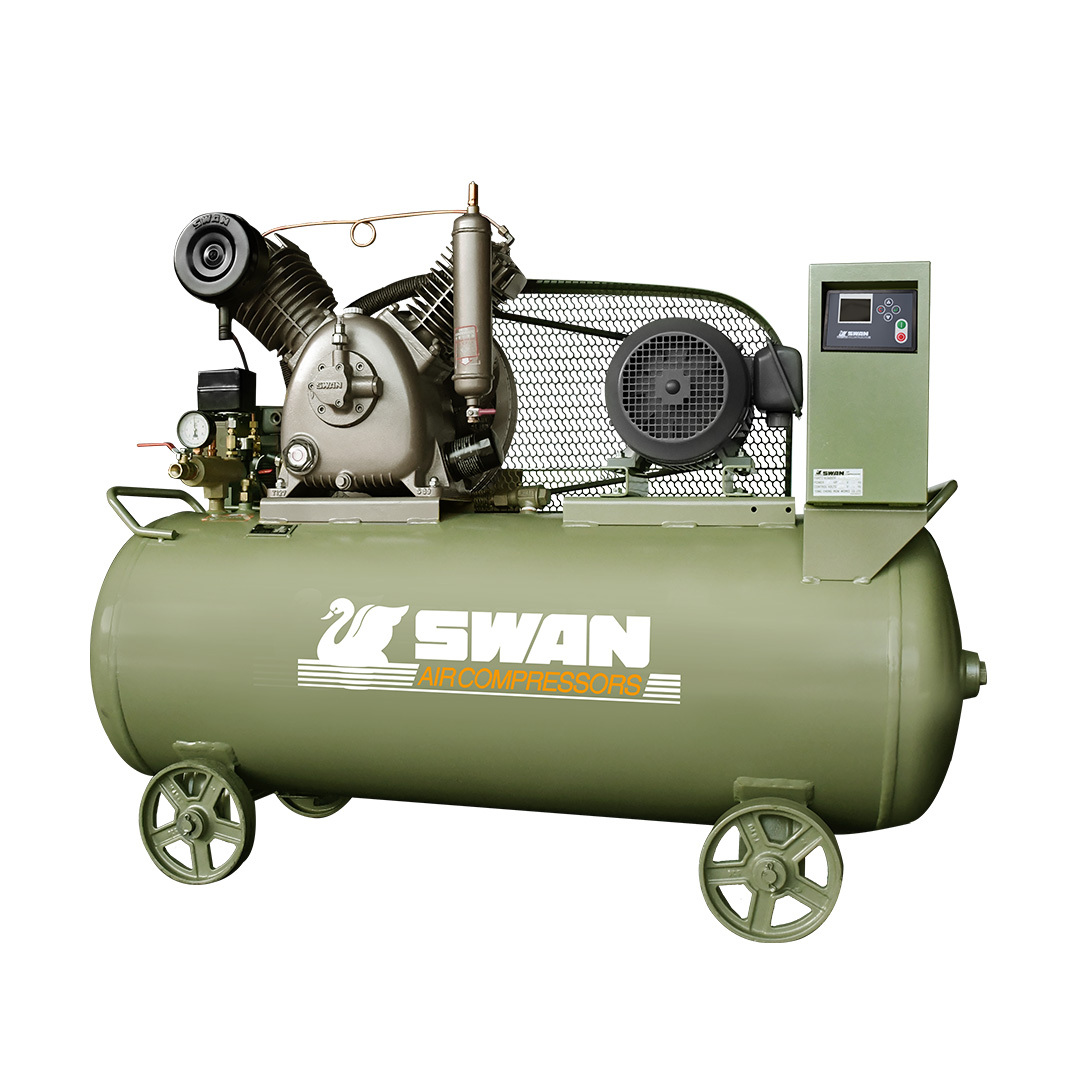

HVU-205N 5 3.7 16 0.338 237 1470X650X1150 239

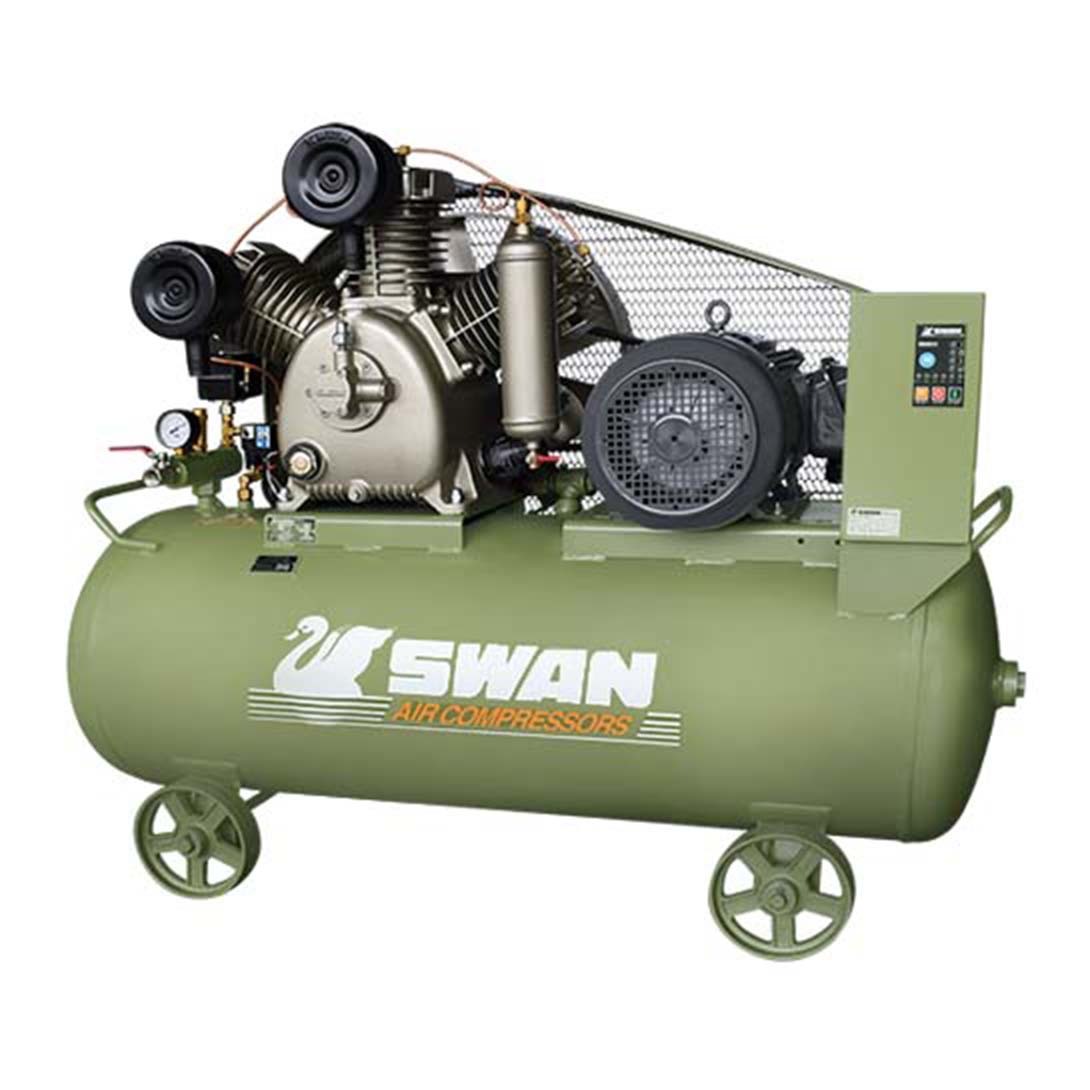

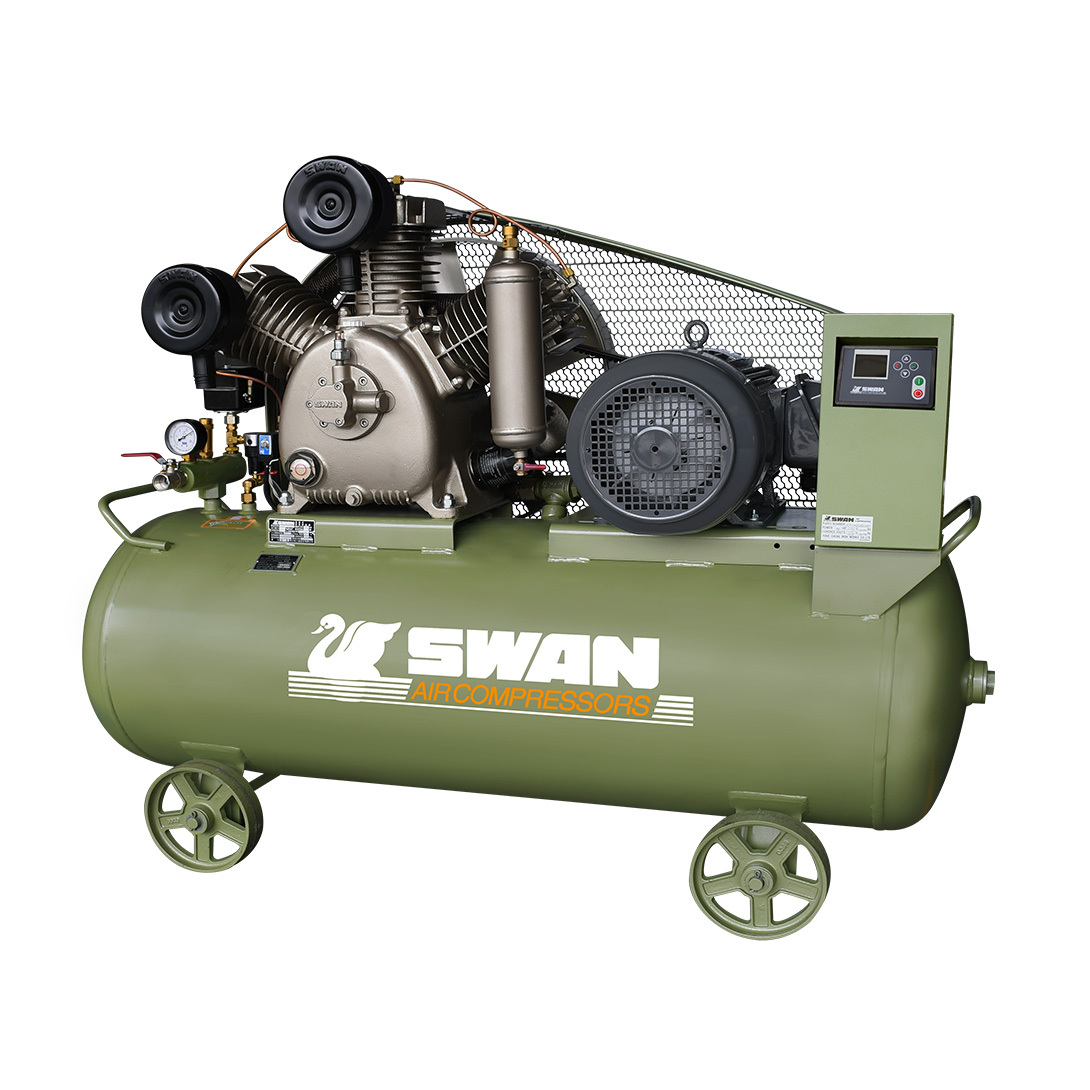

HWU-307N 7.5 5.5 16 0.503 237 1470X650X1150 273

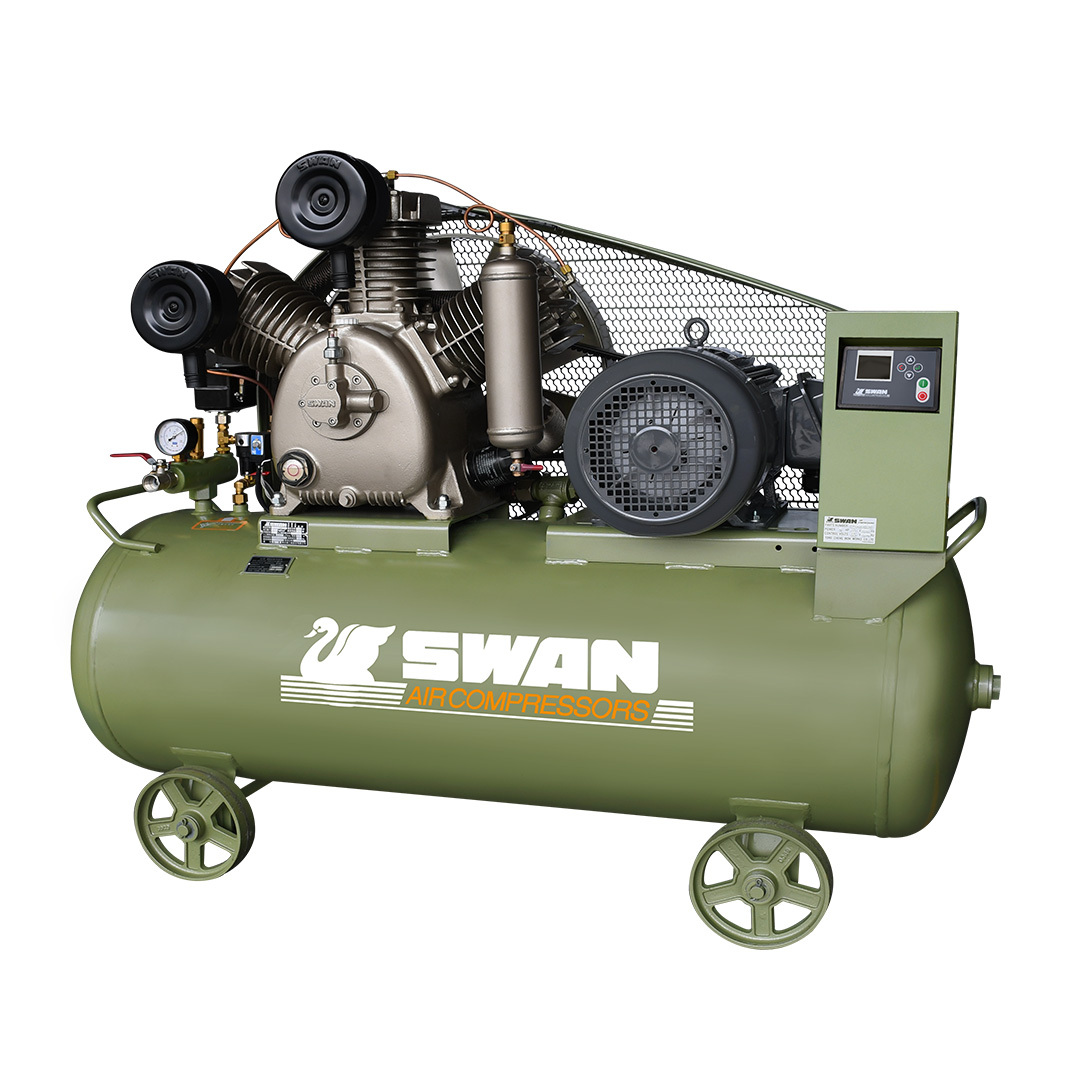

HWU-310N 10 7.5 16 0.652 237 1470X650X1150 275

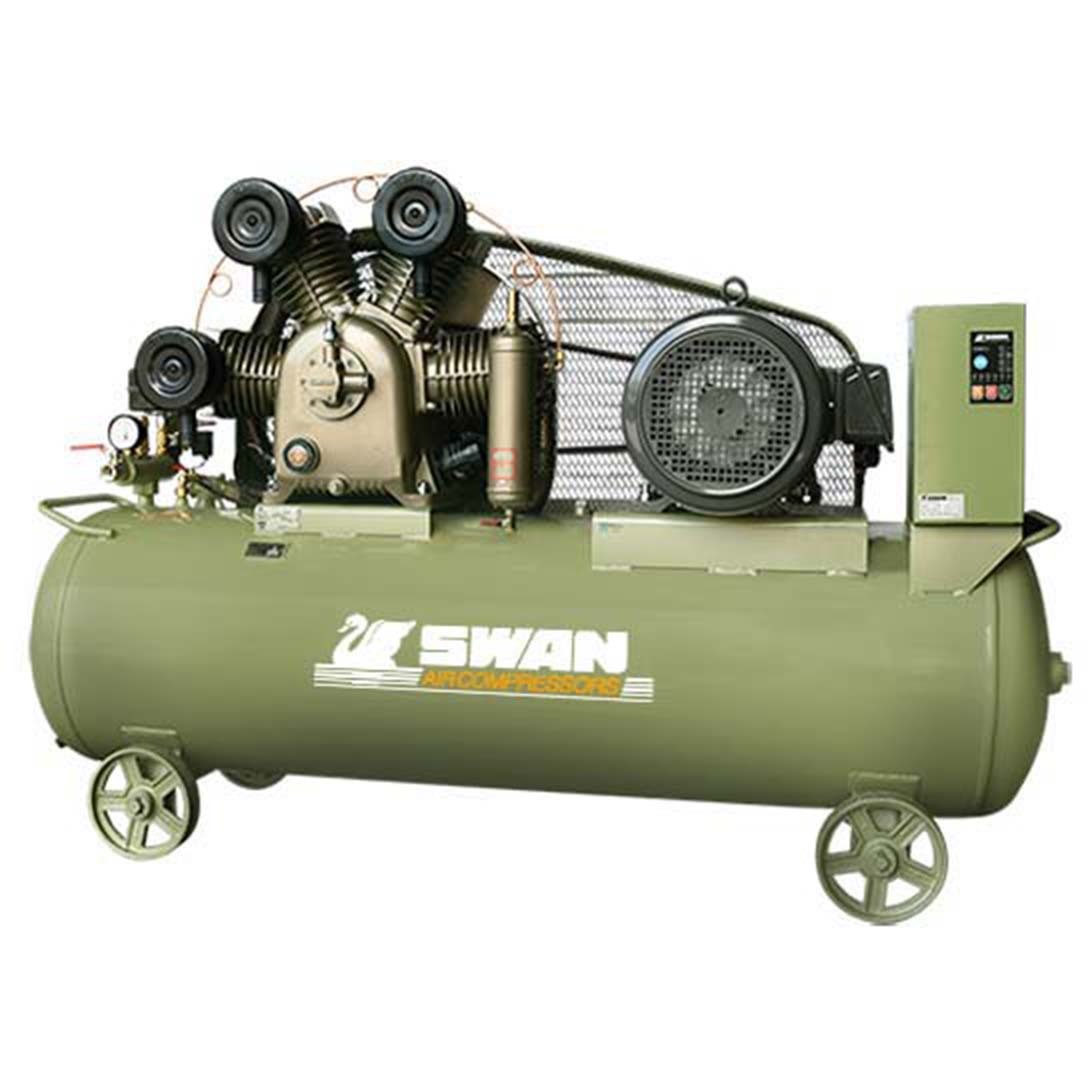

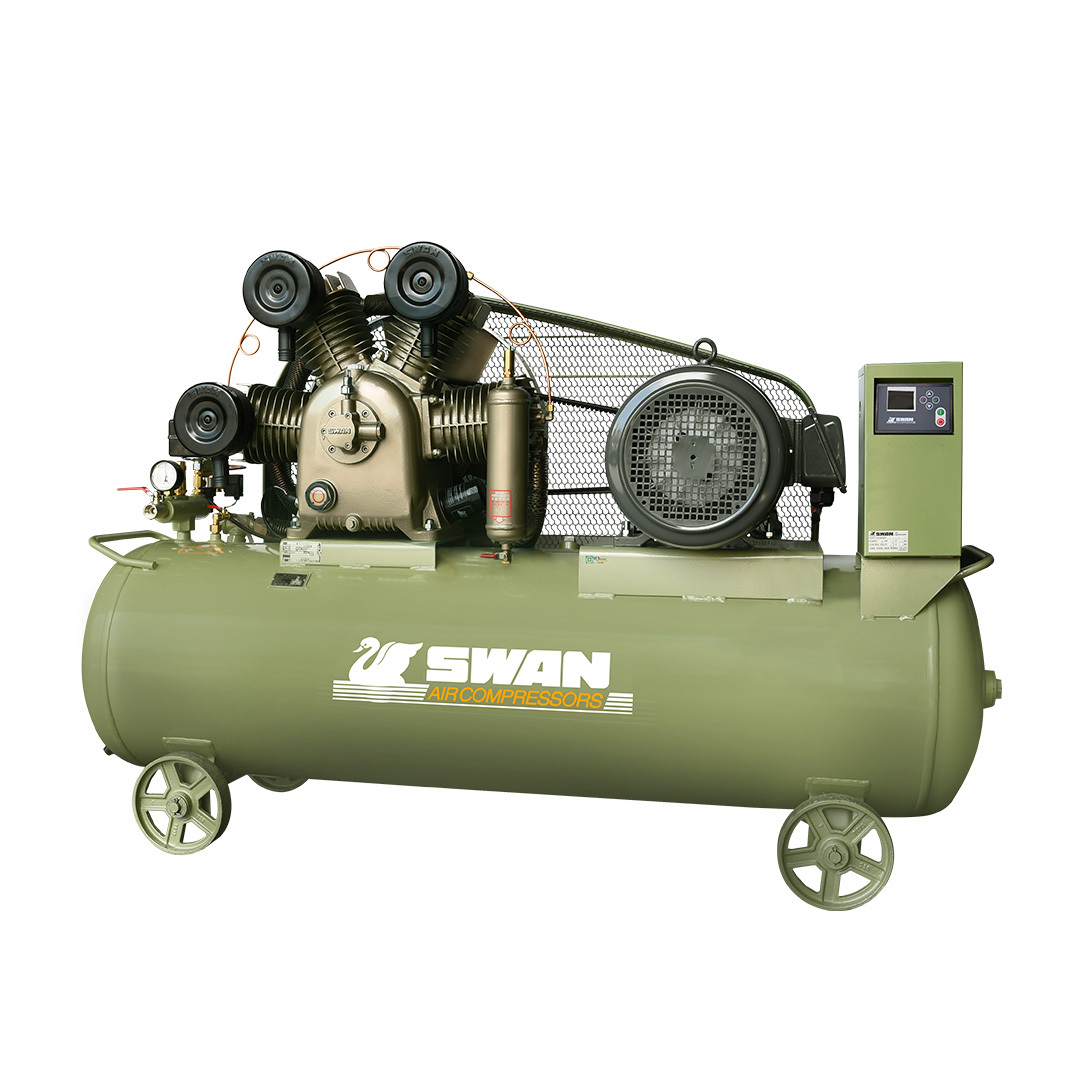

HWU-415N 15 11 12 0.929 300 1835X650X1200 365
HVU(P)-215 15 11 12 1.064 300 2230X800X1400 515
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
