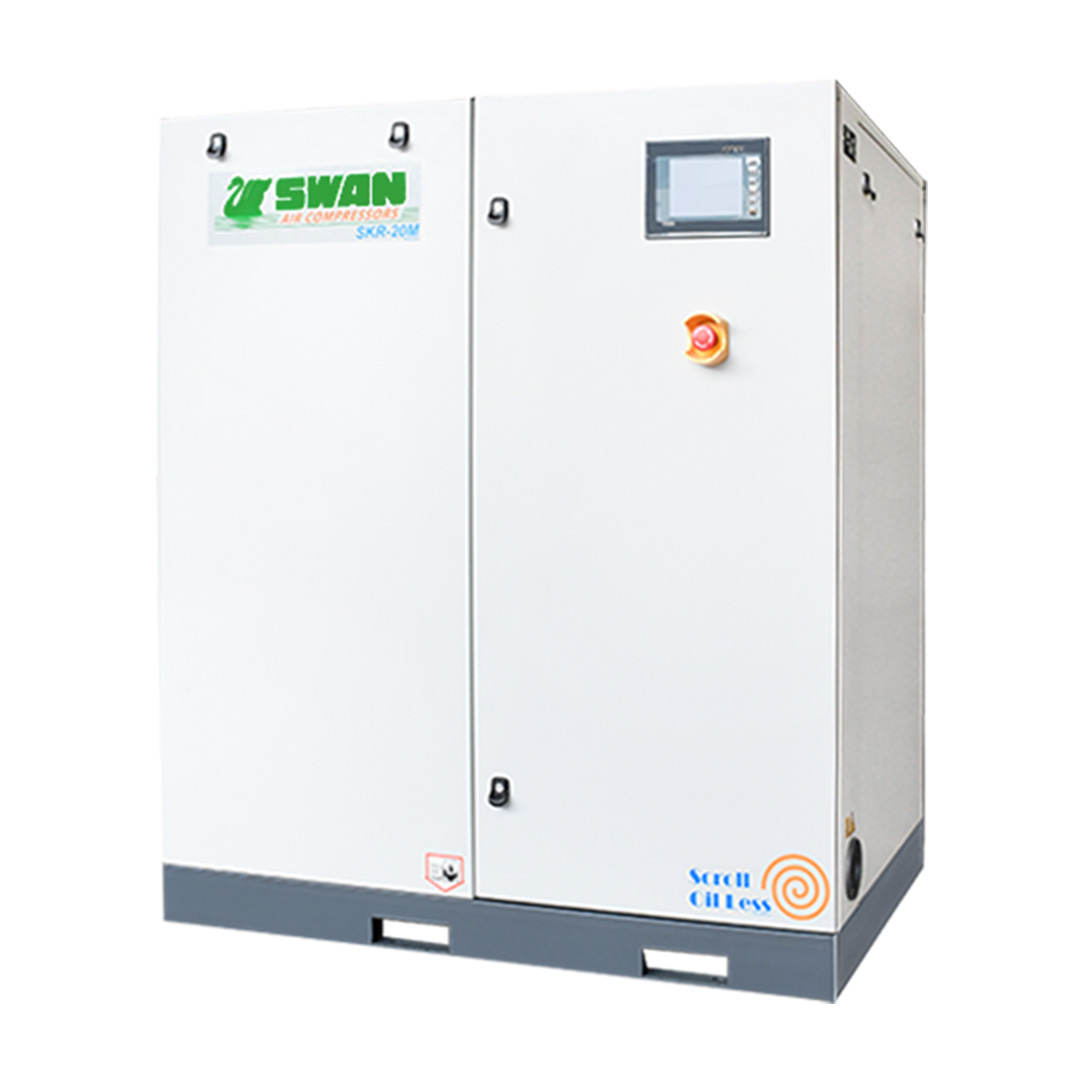

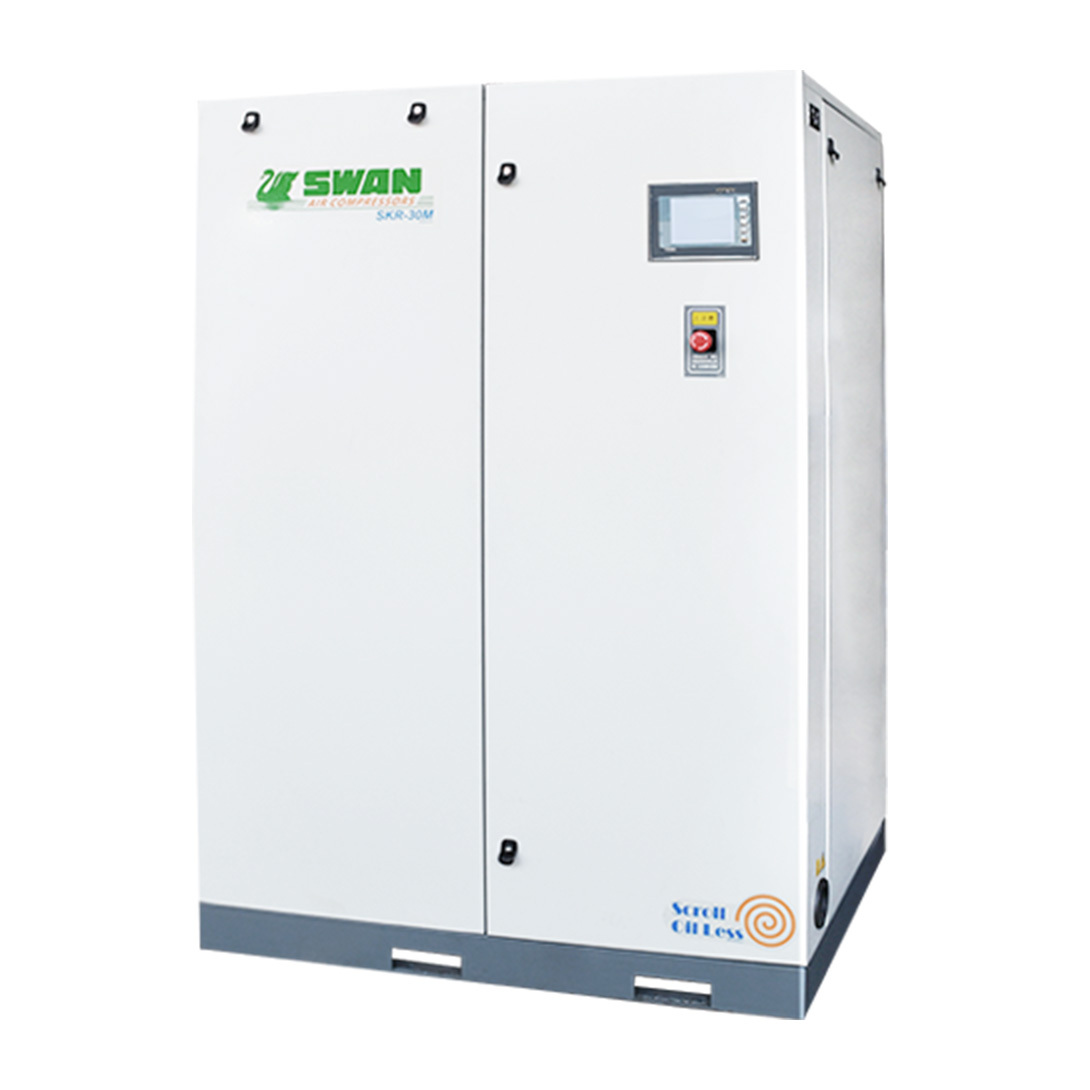

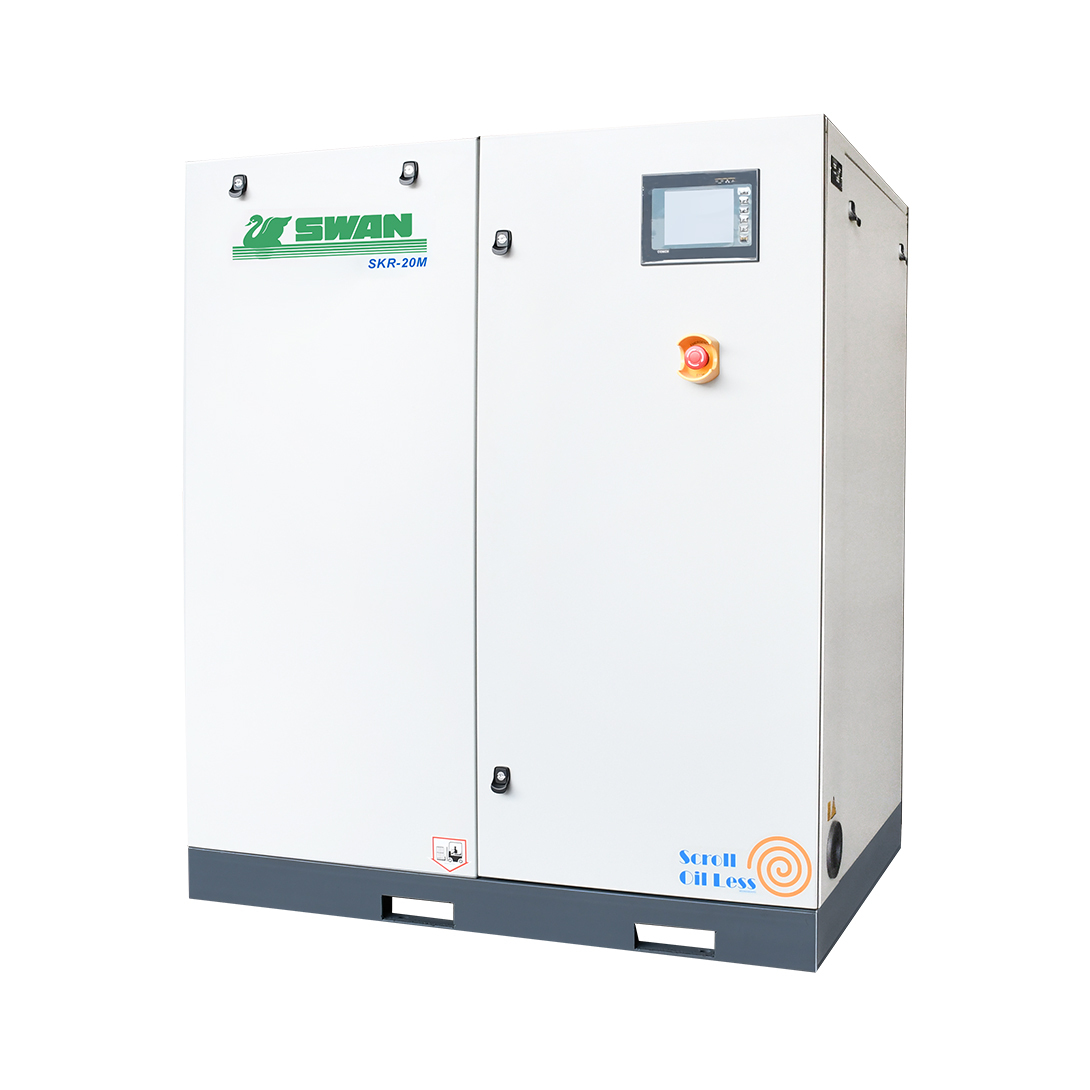

SKR-M Series

Energy and Costs Saving. Smart Controller. Low vibration and Silent running. Easy to adjust the Belts’ tension. Simple , Reliable, and Durable. Duplex or Multiple units combined with Optimized air discharge quantity control.

Specifications

  • Horse power (HP) 6~30
  • Working pressure (kg/cm²) 8~10
  • Capacity (m³/min) 0.42~2.40
聯絡我們

Contact us
型錄下載

Catalogue download
詳細規格

Detailed specifications

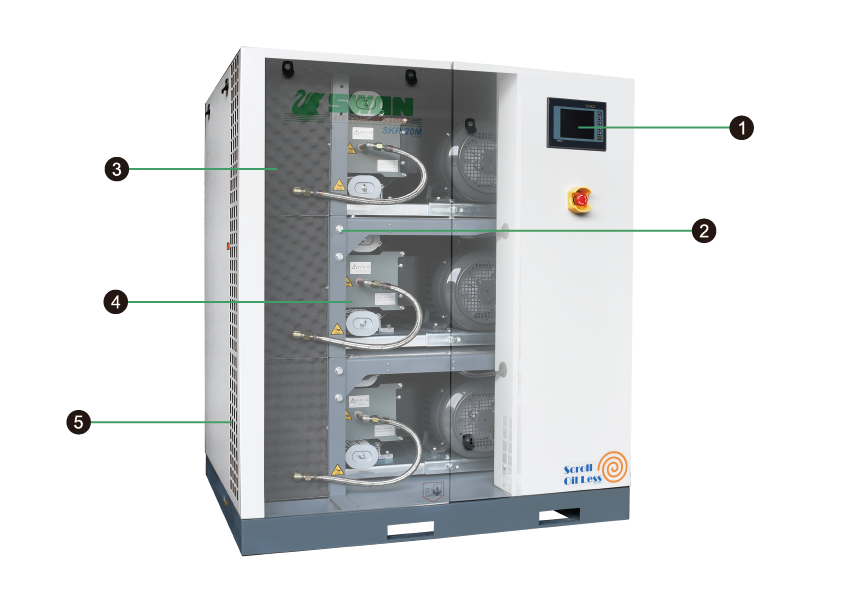

SCROLL MULTIPLE UNITS COMBINED SERIES

Intelligent control, meet demand with the most efficient operation

  1. Smart controller
  2. Multi-air ends sturdy structure
  3. Silent cabinet type design
  4. SWAN scroll air end
  5. High efficient air cooler


INTRODUCTION OF ACCESSORIES

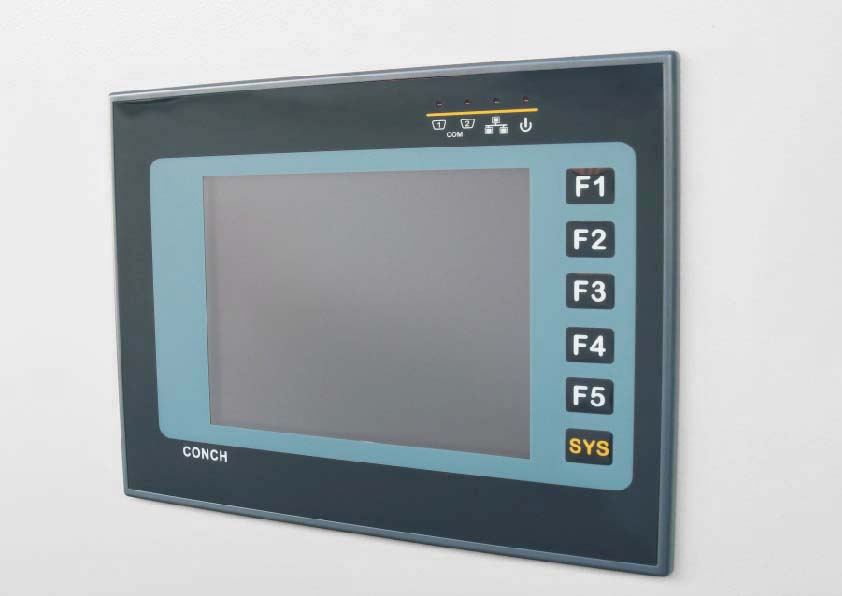

Smart controller

According to different air discharge quantity the Smart Controller adjust the running units to be simplex or multiple operation units; available for remote control, configure and optimize the operation performance, the Smart Controller automatically be adjusted to an automatic or semi-automatic operation mode.

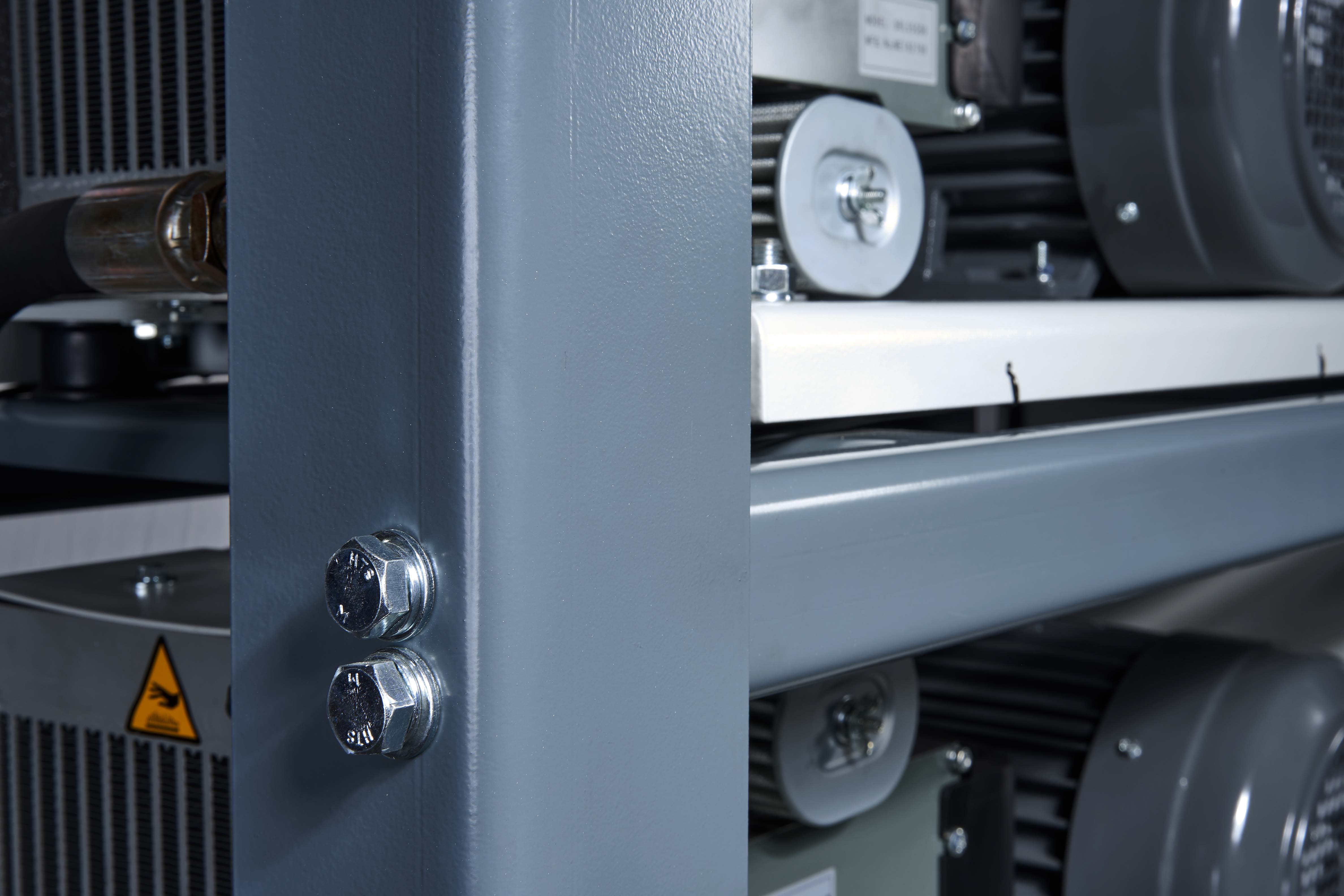

Multi-air ends sturdy structure

The strong sheet metal structure can steadily combine multiple air ends to save the space and improve work efficiency.

Silent cabinet type design

Adopt strong sheet metal structure, sound-absorbing material, and high efficiency soundproof design to effectively reduce running noise and vibration.

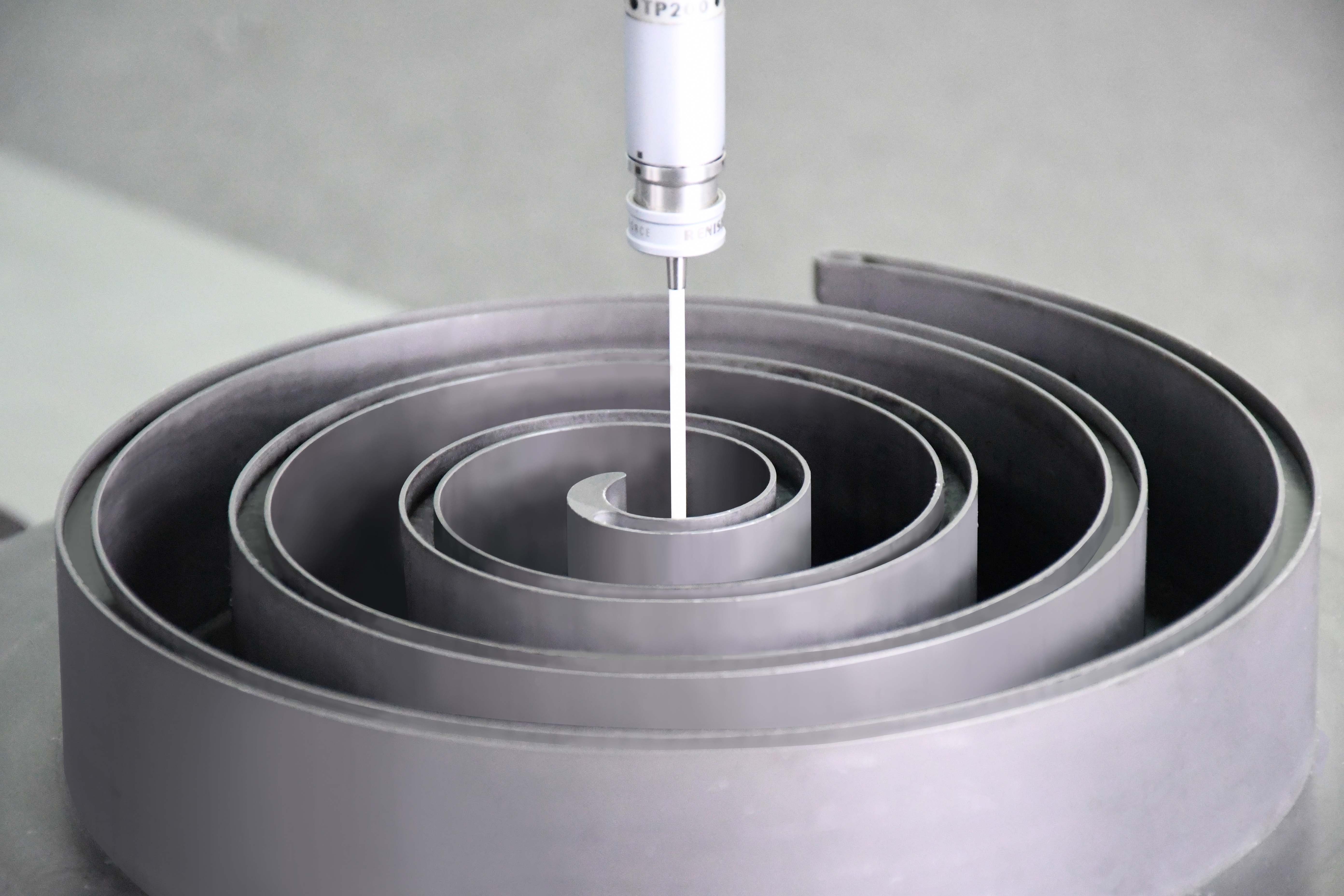

SWAN scroll air end

Low vibration, quietness, and low noise, with dual or multiple operation units to meet different displacement requirement to optimize the air compressor system.

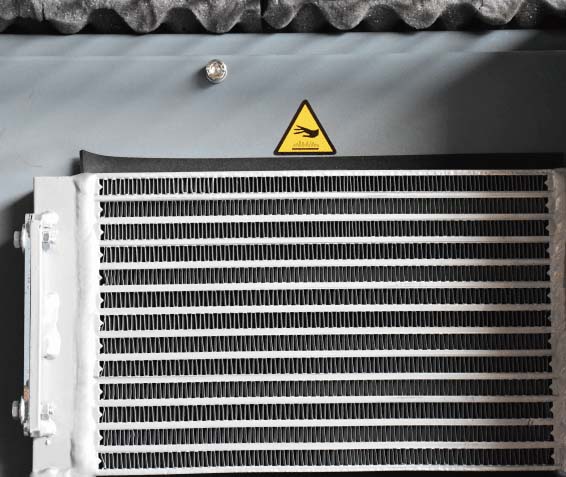

High efficiency air cooler

High efficiency aluminum fin cooler, the vane fan dissipate heat effectively, and greatly reduce the temperature in the cabinet, that benefits to the air compressor withstand constant running, more stable with longer service life.


PRODUCT FEATURES

Detailed specifications

Model Power (HP) Power (kW) Working Pressure (kg/cm²) Capacity (m³/min) Dimension (mm) (L*W*H) Weight (kg)
SKR- 06M 3x2 2.2x2 8 0.48 1200X800X955 392
SKR -06M 3x2 2.2x2 10 0.42 1200X800X955 392
SKR- 10M 5x2 3.7x2 8 0.80 1200X800X955 426
SKR -10M 5x2 3.7x2 10 0.68 1200X800X955 426

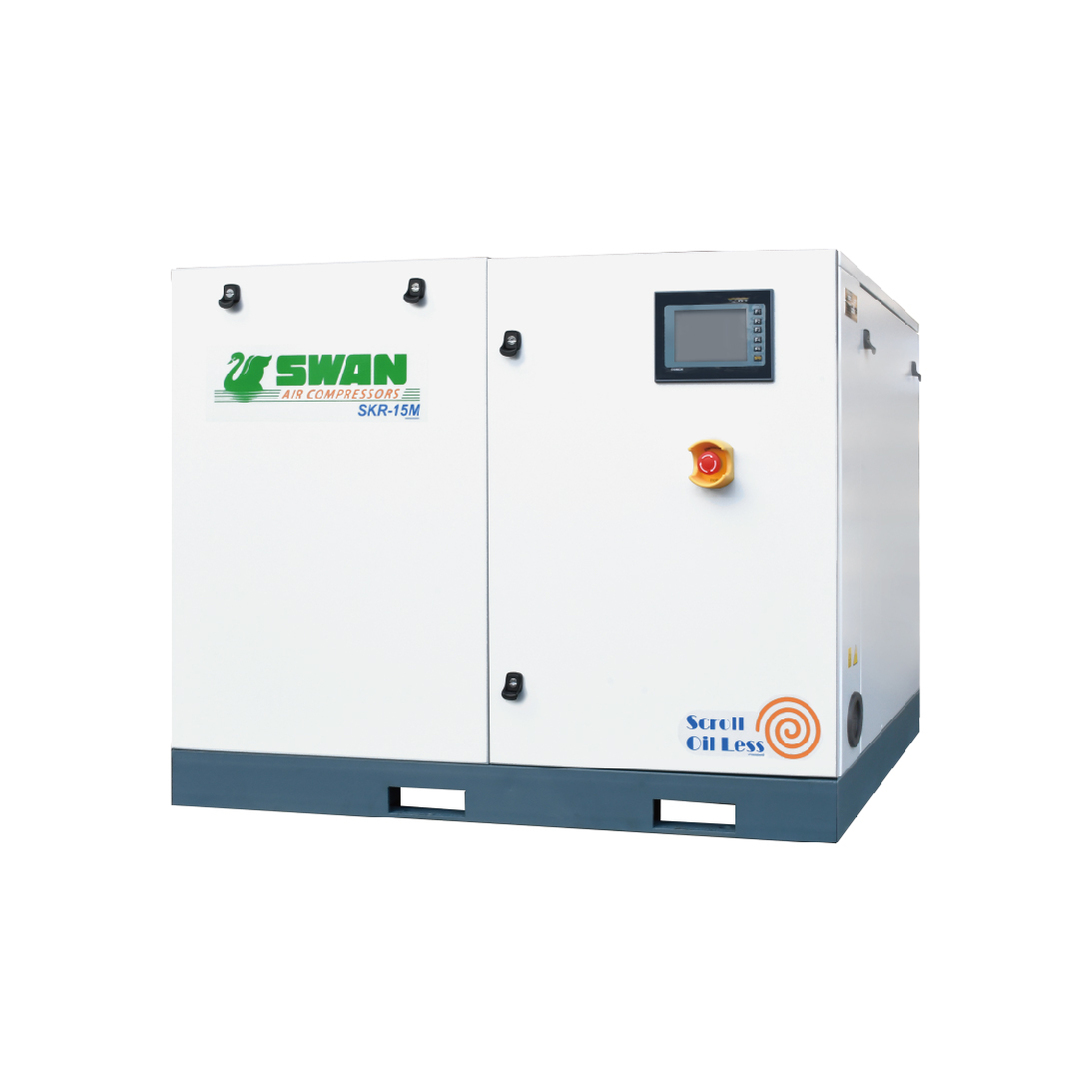

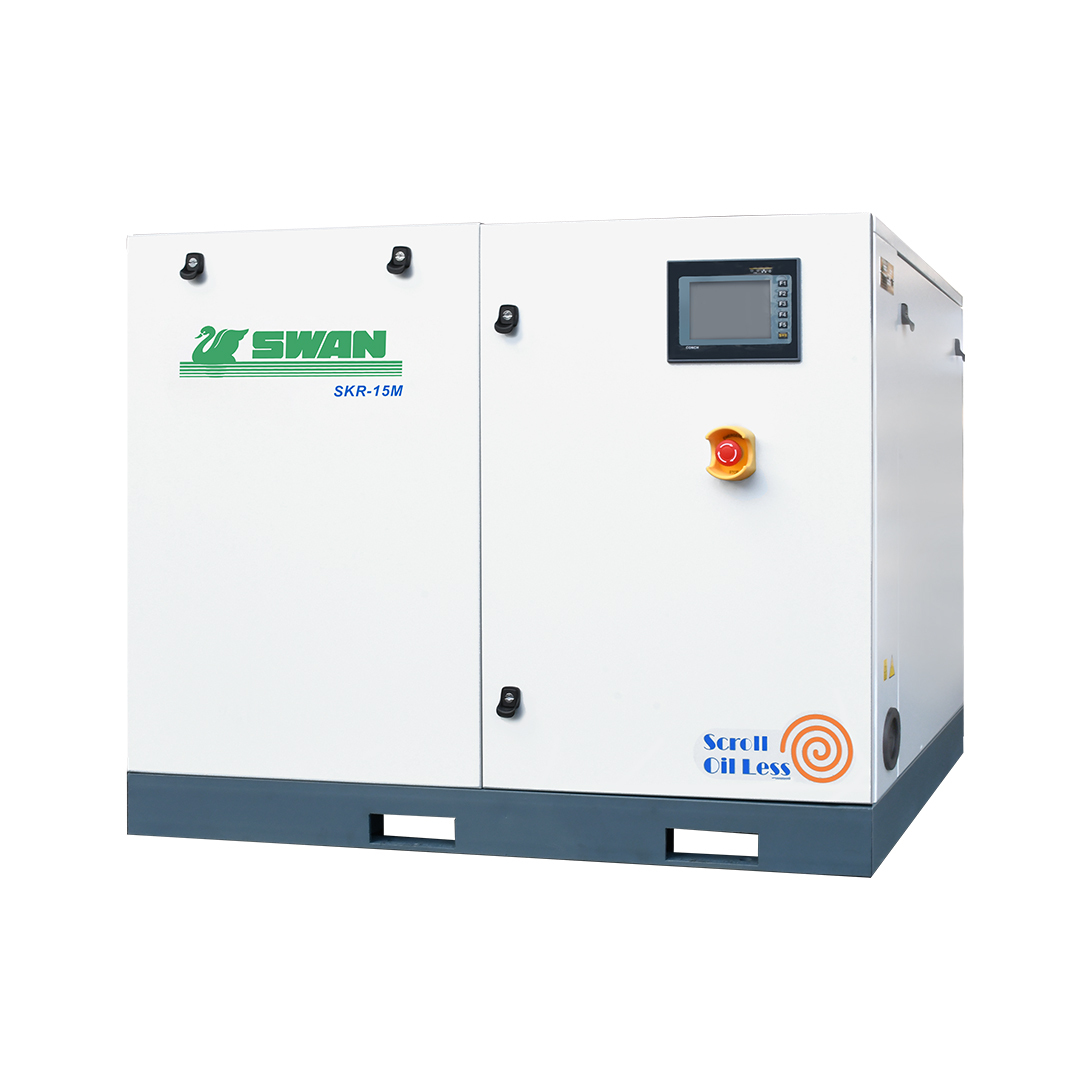

SKR- 15M 7.5x2 5.5x2 8 1.20 1200X800X955 485
SKR -15M 7.5x2 5.5x2 10 0.94 1200X800X955 485
SKR- 20M 7.5x3 5.5x3 8 1.80 1200X800X1370 684
SKR -20M 7.5x3 5.5x3 10 1.41 1200X800X1370 684

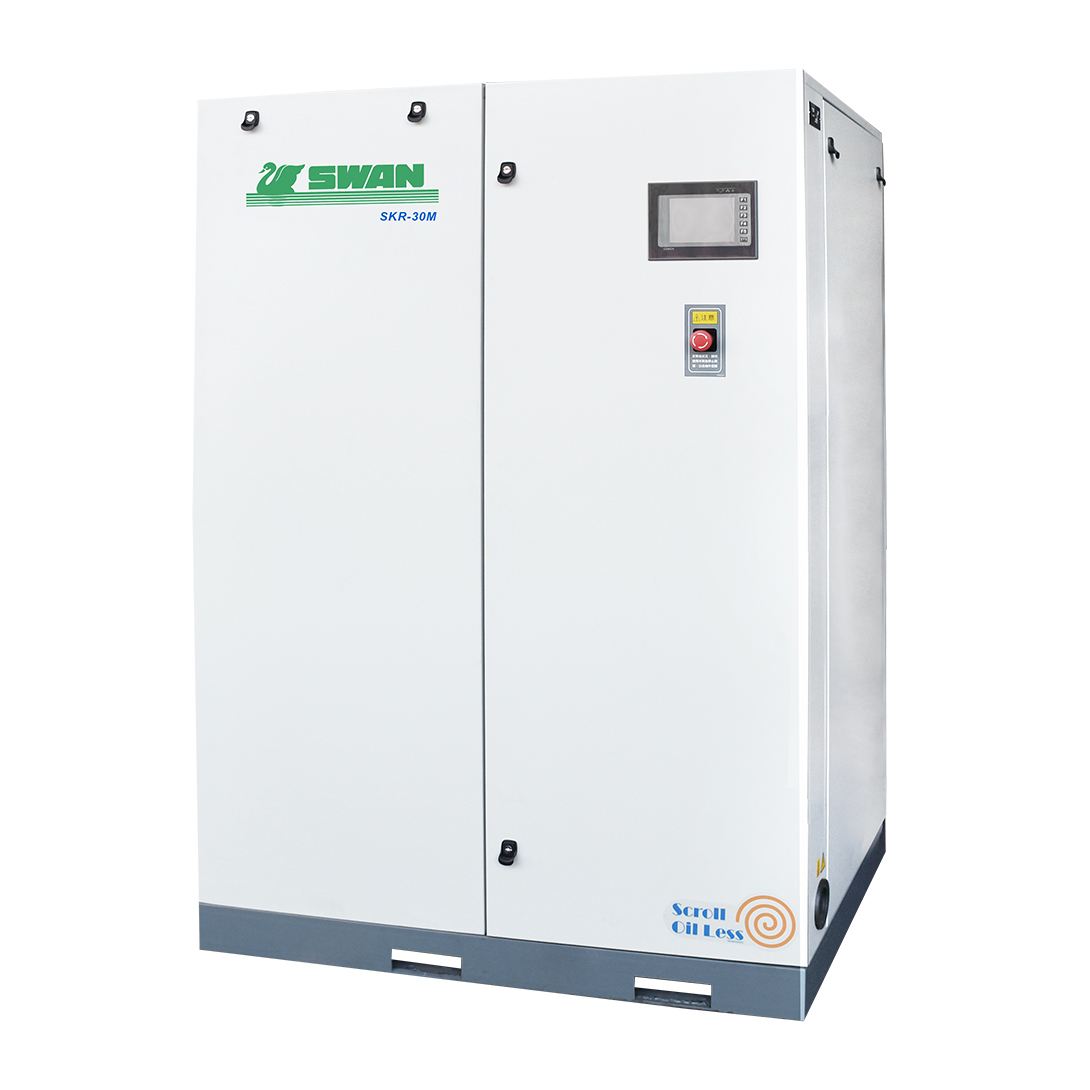

SKR- 30M 7.5x4 5.5x4 8 2.40 1200X800X1785 870
SKR -30M 7.5x4 5.5x4 10 1.88 1200X800X1785 870
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
