ARB Series

Specifications

  • Applicable air compressor 1~300HP
  • Working pressure (kg/cm²) 16
聯絡我們

Contact us
型錄下載

Catalogue download
詳細規格

Detailed specifications

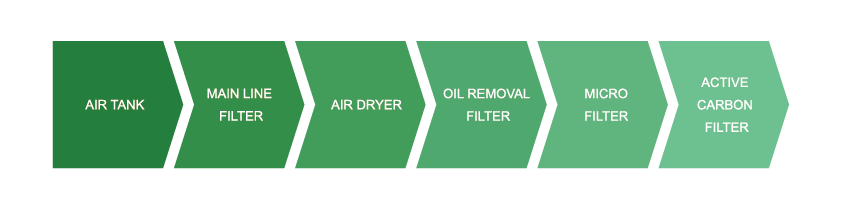

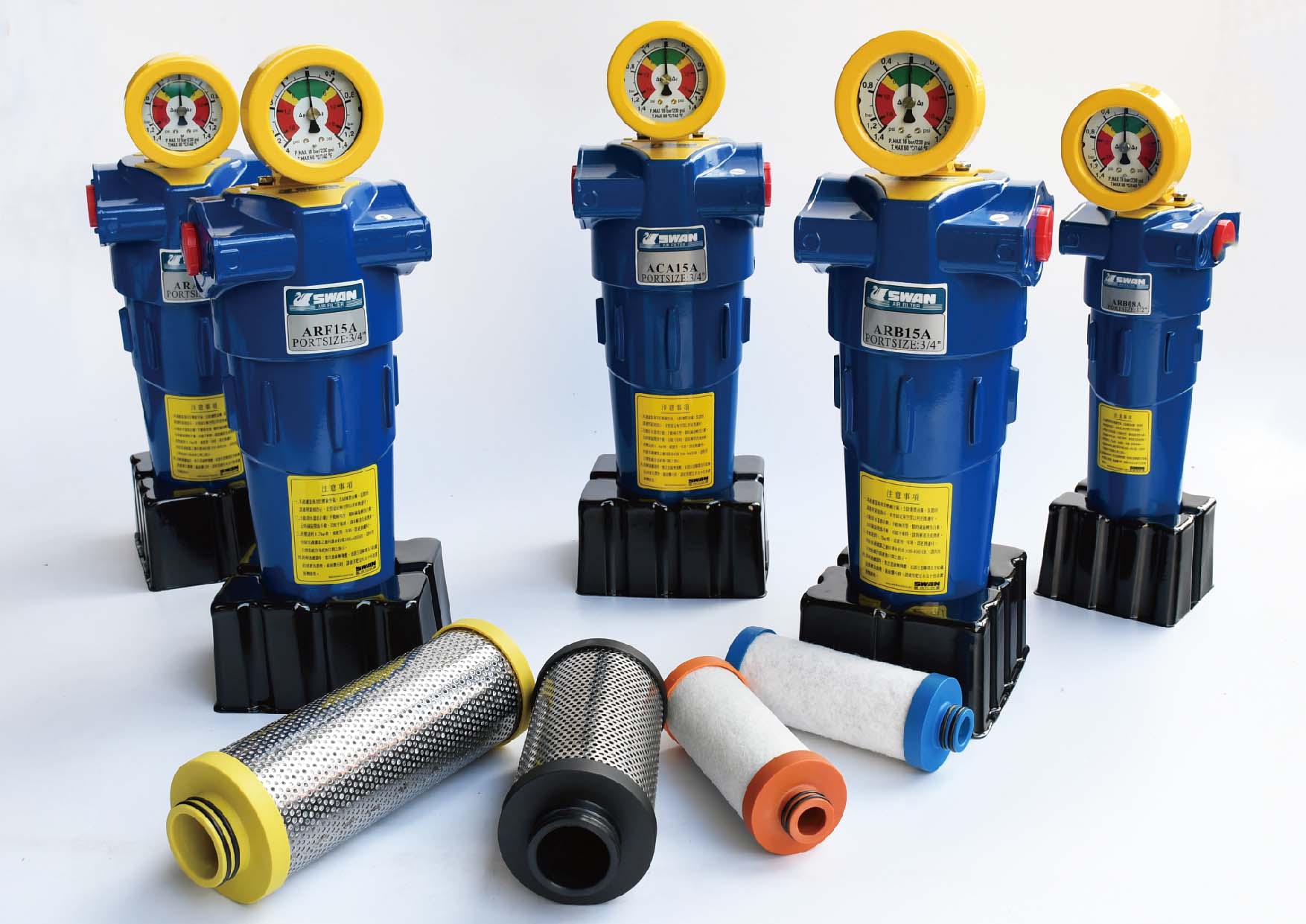

FILTER

Main Line Filter (ARF)

For the removal of dust particles down to 1μm.

Oil Removal Filter (ARB)

For the removal of oil vapor down to 0.1ppm.

Micro Filter (ARA)

For the removal of microparticles down to 0.01ppm.

Active Carbon Filter (ACA)

For the removal of mini oil mist and odor down to 0.003ppm.

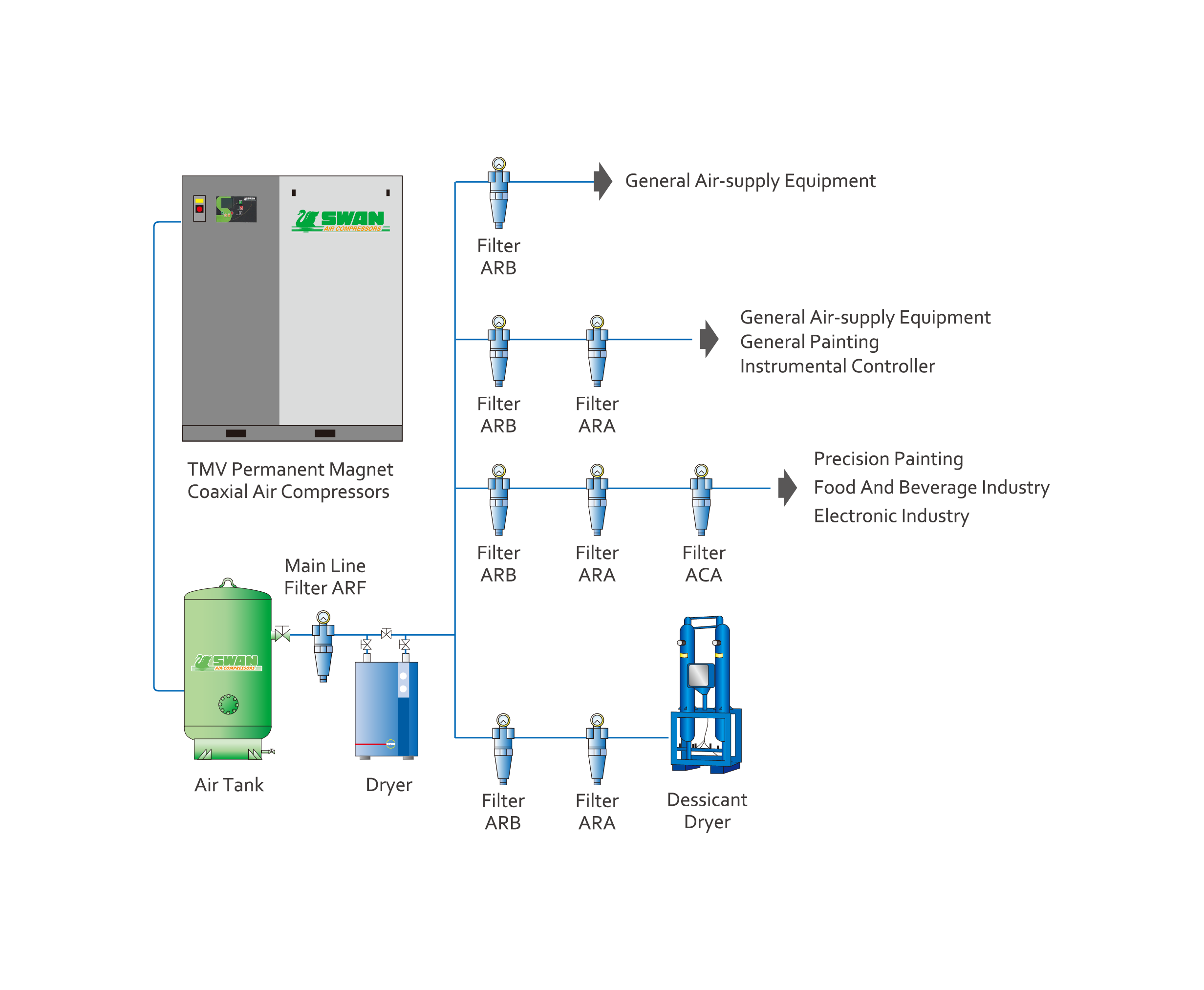

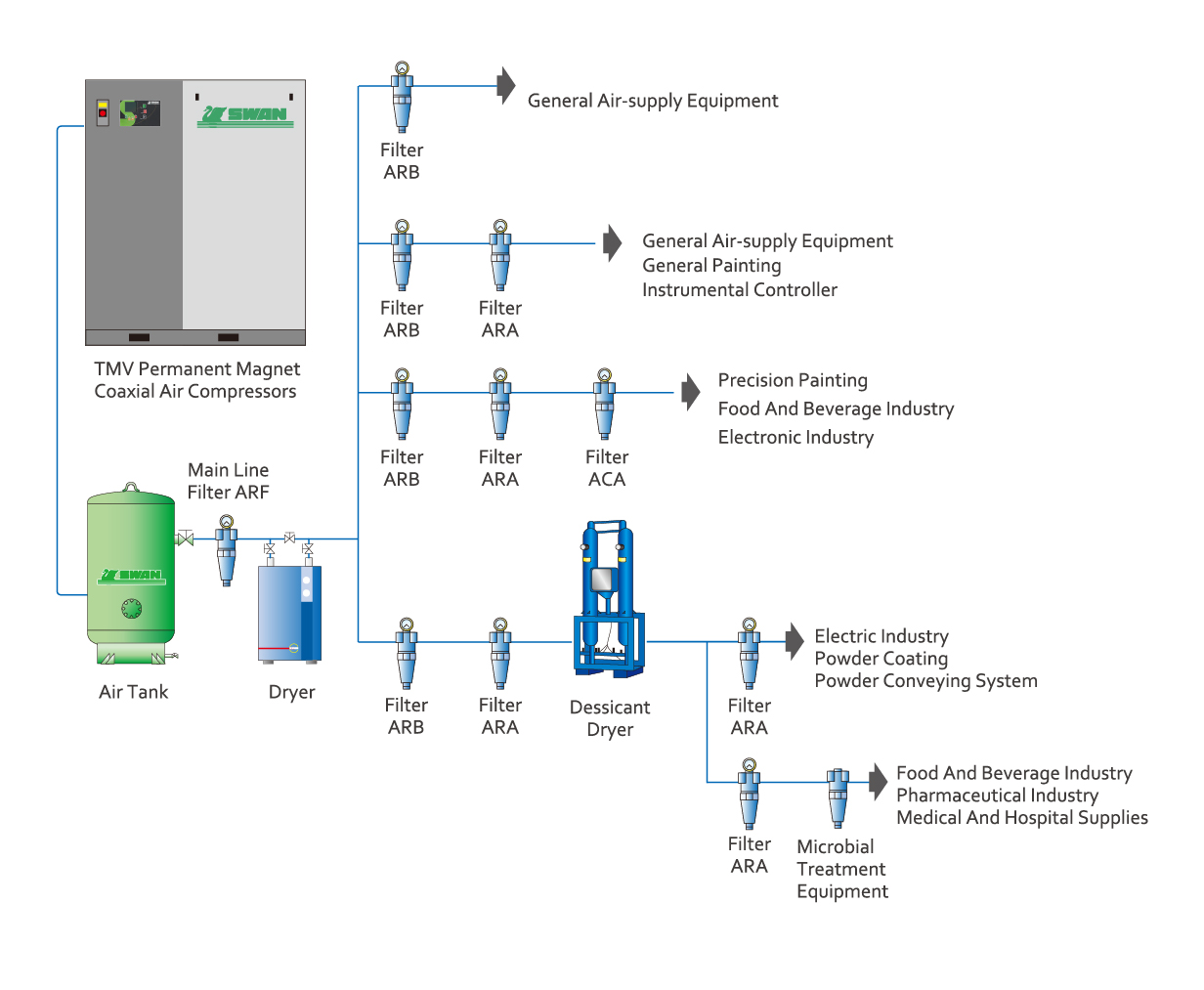

COMPRESSED AIR CLEANING SYSTEM





Detailed specifications

Model Working Pressure (kg/cm²) Oulet/Inlet Pipe Size (inch) Flow Rate (m³/min) A*B*C*D (mm) Applicable Air Compressor Power (HP) Applicable Air Compressor Power (kW)
ARB 04A 16 1/4'' 0.5 93*215*50*20 1~5 0.75~3.7

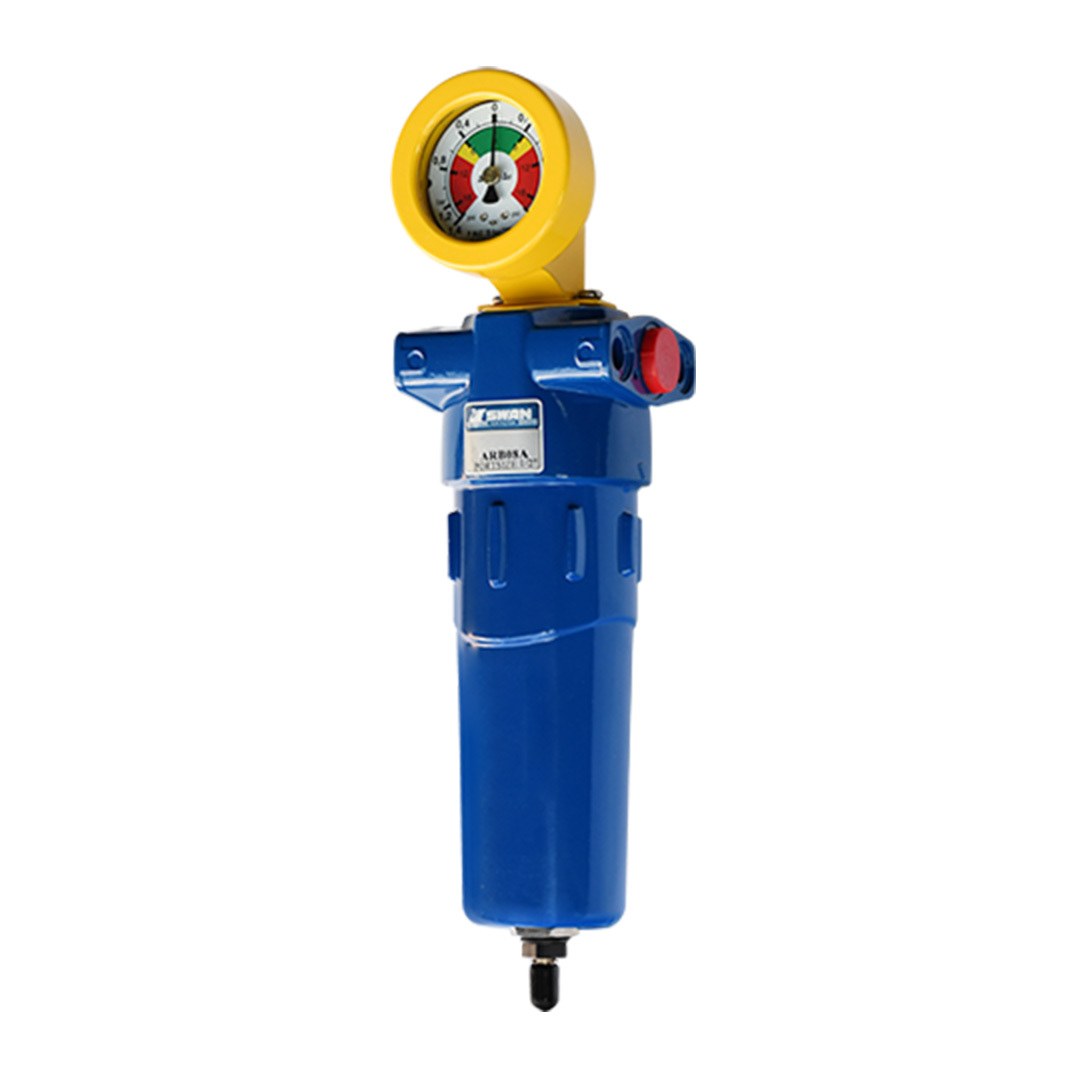

ARB 08A 16 1/2'' 1.8 93*300*50*20 5~10 3.7~7.5

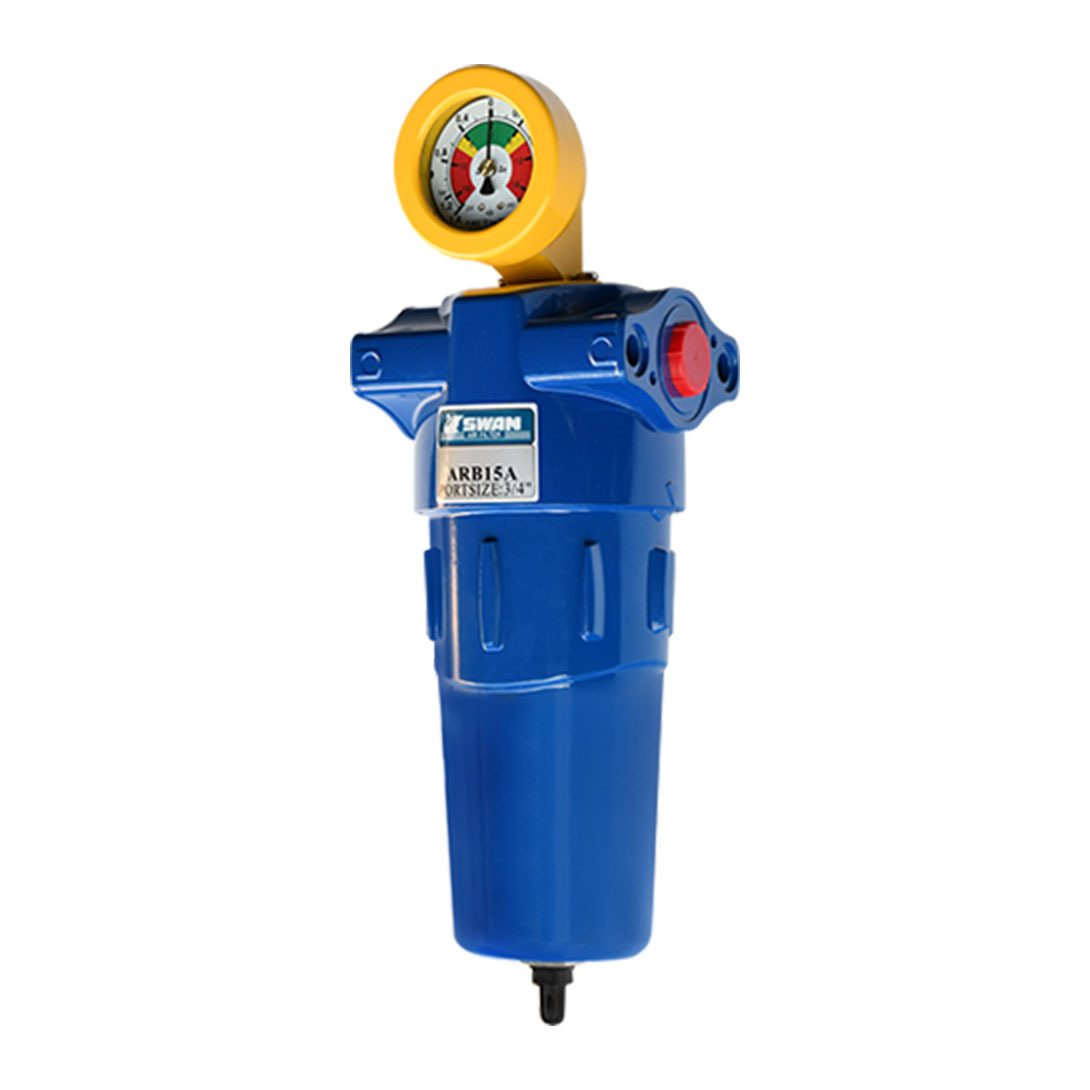

ARB 15A 16 3/4'' 3.1 125*320*70*30 10~20 7.5~15
ARB 22A 16 1'' 5.0 125*420*70*30 20~30 15~22
ARB 55A 16 1-1/2'' 11.7 160*540*100*38 30~75 22~55
ARB 75A 16 2'' 16.7 190*580*110*52 75~100 55~75
ARB 90A 16 2-1/2'' 20.0 190*680*110*52 100~125 75~90
ARB 125 16 3'' 25.0 223*670*300*100 125~175 90~132
ARB 220 16 3'' 36.6 223*1020*660*100 175~300 132~220
  • The specification of the above air compressor is for 50Hz's, other discharge, pressure and drive type available upon request
  • SWAN Air Compressors keep on searching for excellence, we reserve the right to alter specifications without prior notice.
