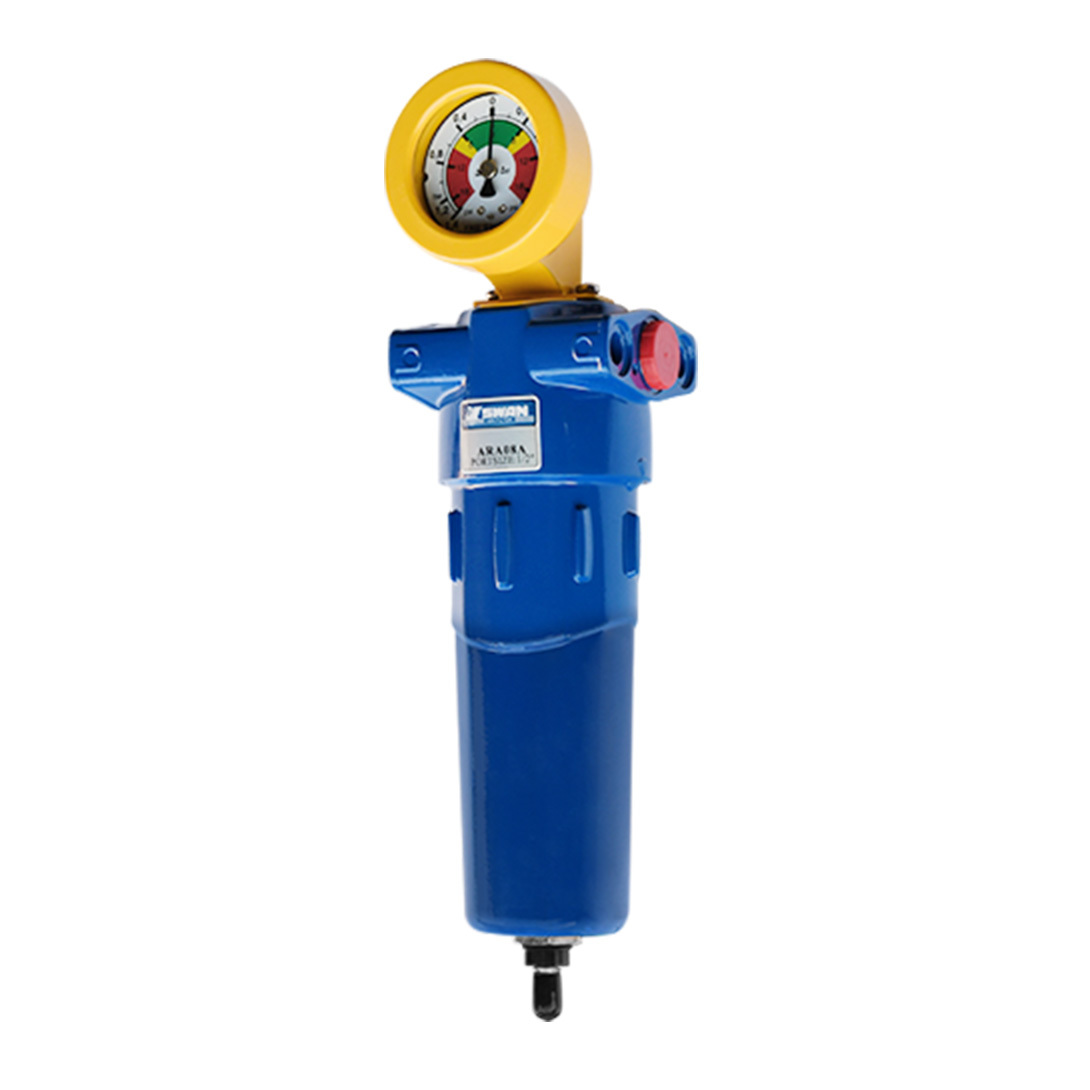

ARA-08

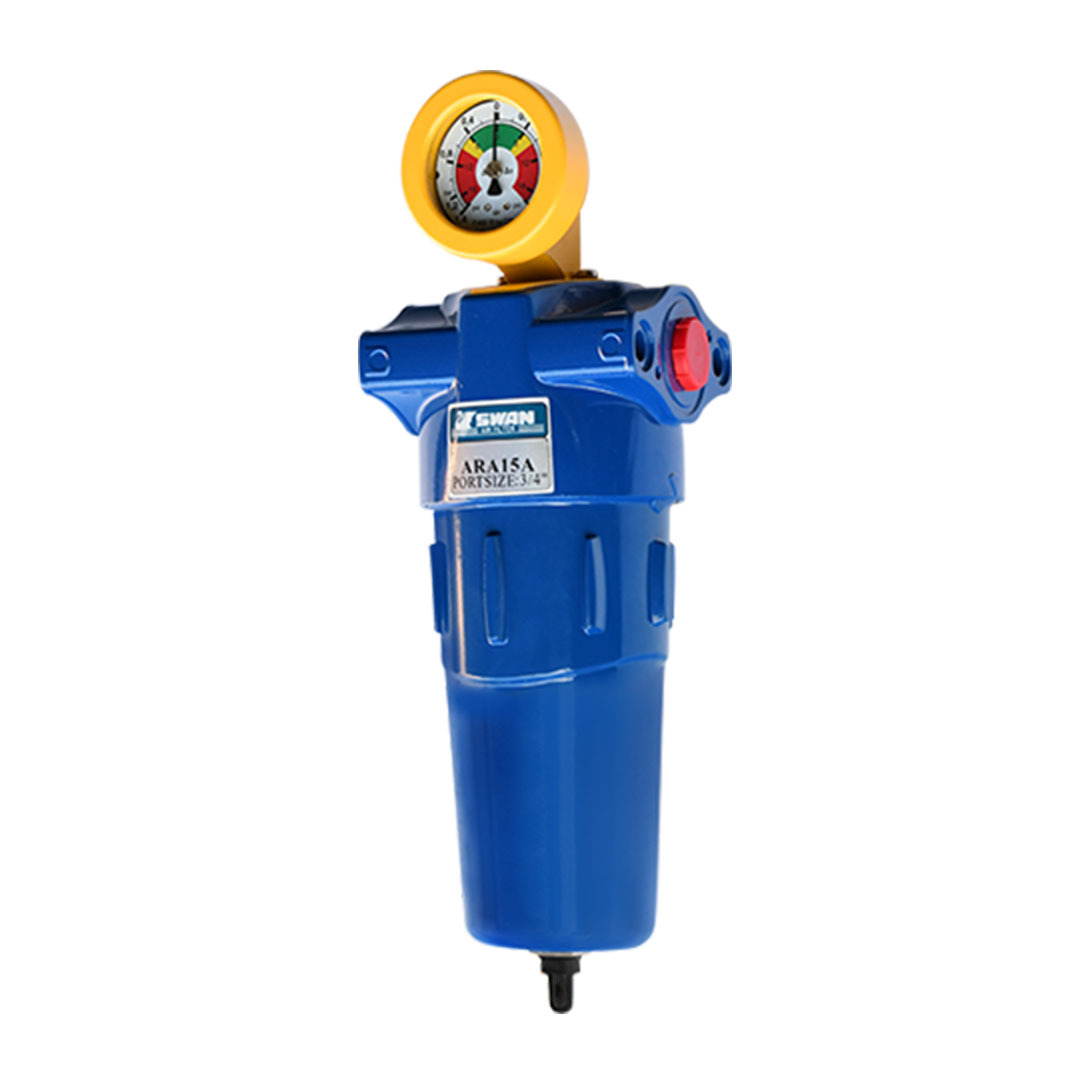

ARA-15A
| Model | Working Pressure (kg/cm²) | Oulet/Inlet Pipe Size (inch) | Flow Rate (m³/min) | A*B*C*D (mm) | Applicable Air Compressor Power (HP) | Applicable Air Compressor Power (kW) |
|---|---|---|---|---|---|---|
| ARA 04A | 16 | 1/4'' | 0.5 | 93*215*50*20 | 1~5 | 0.75~3.7 |
| ARA 08A | 16 | 1/2'' | 1.8 | 93*300*50*20 | 5~10 | 3.7~7.5 |
| ARA 15A | 16 | 3/4'' | 3.1 | 128*323*60*32 | 10~20 | 7.5~15 |
| ARA 22A | 16 | 1'' | 5.0 | 125*320*70*30 | 20~30 | 15~22 |
| ARA 55A | 16 | 1-1/2'' | 11.7 | 125*420*70*30 | 30~75 | 22~55 |
| ARA 75A | 16 | 2'' | 16.7 | 190*580*110*52 | 75~100 | 55~75 |
| ARA 90A | 16 | 2-1/2'' | 20.0 | 190*580*110*52 | 100~125 | 75~90 |
| ARA 125 | 16 | 3'' | 25.0 | 223*670*300*100 | 125~175 | 90~132 |
| ARA 220 | 16 | 3'' | 36.6 | 223*1020*660*100 | 175~300 | 132~220 |
